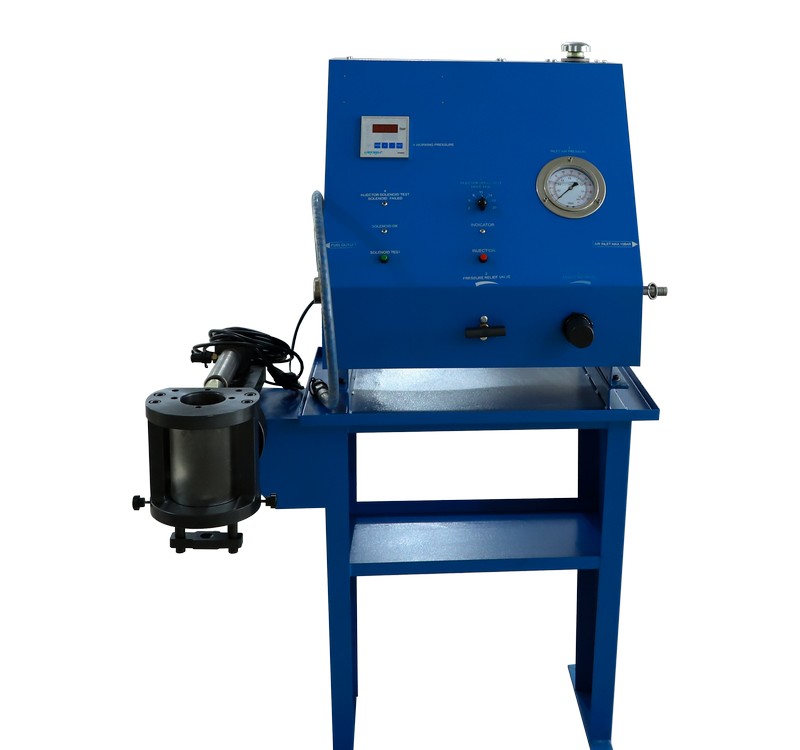

名称:喷油器试验台HDP1000-X

点击次数:148

更新时间:2020-11-13 08:59:56

想了解更加详细的产品信息,您还可以电话联系: 13815036227

产品详情



HDP1100-X船用喷油器测试单元配备了一个数字读数,用于在24冲程船用柴油机上有效和精确地测试喷油器。

HDP1000-X/HDP1000-X1已根据主要发动机制造商的要求开发,使测试电子喷油器放置在WartsilaRT-Flex/W-X共轨发动机

测试单元具有电子系统,用于激活喷油油器内的电磁阀。

此设备是一个气动/液压试验台与数字读出,以提供一个精确的结果。 作为一个专业喷油器测试工具它的特点是一个强大的设计

此设备与发动机相关的阀座一起交付。 大多数阀座可以适应多个喷油器,因此试验台可以用于主/辅助/发动机喷油器和发动机安全阀测试

液压输出压力:

1100Bar @10Bar空气

800Bar @7Bar空气

空气消耗量:

50升/周期 @10Bar空气

36升/周期 @7Bar空气

无压力下流量:

1.2升/分钟 @7巴空气

循环频率:

60个周期/分钟 @>7Bar空气输入,无输出压力

每冲程油量

20毫升

油箱容量:

6升

量规:

量规: 1.0级

显示: 0.2级

重量:

75公斤

尺寸:

560x950x1525毫米

耗电量:

100VA

230或115VAC50-60赫兹

包含适配器:

气动: 标准接头M42x2

液压: 高压软管与116系列母接头


The IOP Marine fuel injector testing unit VPUD is equipped with a digital readout for effective and precise testing of fuel injectors in 2– & 4 – stroke marine diesel engines.


A well-functioning fuel injector provides an efficient combustion and therefore low fuel consumption.

The HDP1000-X has been developed upon request from a major engine builder enabling test of the electronic fuel injector placed in the Wärtsilä RT-flex / W-X Common Rail engine.

The test unit features an electronic system for activation of the solenoid valve placed inside the tested fuel injector.

1.1. Features

The HDP1000-X is a pneumatic/hydraulic test rig with digital readout for providing a precise result. It features a robust design as a professional tool for fuel injector testing onboard ships and in offshore sites.

The HDP1000-X is delivered with an engine related valve holder. Most valve holders can be adapted for multiple fuel injectors so test rig can be used for main / aux / emergency engine injectors and engine safety valves.

Hydraulic output pressure:

1100 bar @ 10 bar air

 800 bar @ 7 bar air

Air consumption:

50 l/cycle @ 10 bar air

36 l/cycle @ 7 bar air

 flow at no pressure:

1,2 l/min @ 7 bar air

Cycle frequency:

60 cycles/min @ > 7 bar air input and no output pressure

Discharge pr. cycle:

20 cm3

Tank capacity:

6 litres

Gauges:

Gauge: Class 1.0

Display: Class 0.2

Weight:

75 kg

Dimensions:

560x950x1525 mm

Power consumption:

Max 100 VA

230 or 115 VAC 50-60 Hz

Included adapters:

Pneumatic: Standard Claw Coupling or M42x2

Hydraulic: High Pressure Hose with 116 series Female coupling
