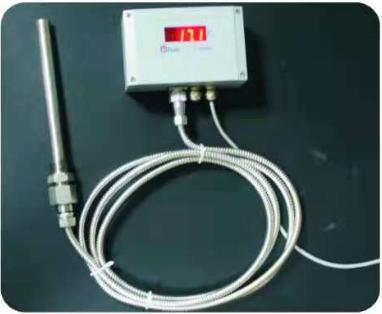

智能数显排气温度表

一、功能简介：

AIS-TD650智能数显排气温度表是采用新一代电路组成的智能化仪表，主要用于柴油机排气温度的测量，进而可对柴油机的运转情况进行检测。本仪器选用德国原装进口传感器，具有可靠性高、体积小、耐温高、耐振动等特点。

二、主要技术参数：

1. 输入形式：热敏电阻Pt100(三线制输入）

2. 工作电压：24VDC±10%

3. 测量范围：0-650°C

4. 运行环境：0~100°C

5. 输出电流：4~20mA

6. 测量精度：1级

7. 显示：四位红色数码管显示，三位整数和一位小数。

8. 功耗：约1W

9. 重量：0.9Kg

10. 防护等级：IP65

Intelligent Digital Exhausting Temperature Gauge

一、Features:

AIS-TD650 intelligent digital exhausting temperature gauge is an intelligentized meter composed of a new generation private circit. It is mainly used in diesel engine exhausting temperature measurement,which can monitor the state of the diesel engine. the meter

Selects imported sensor from German,and has high reliability,small size,high temperature Resistance and

Shock resistance.

二、Principal technical parameters:

1.Input:Pt100(three-wire system)

2.Working voltage:24VDC±10%

3.Measuring range:0-650°C

4.Environment temperature:0~100°C

5.Output current:4~20mA

6.Measuring accuracy:level 1

7.Display:three integers and one decimal displayed by four red LED

8.Power consumption:1W approximately

9.Weight:0.9Kg

10.Protection class:IP65
